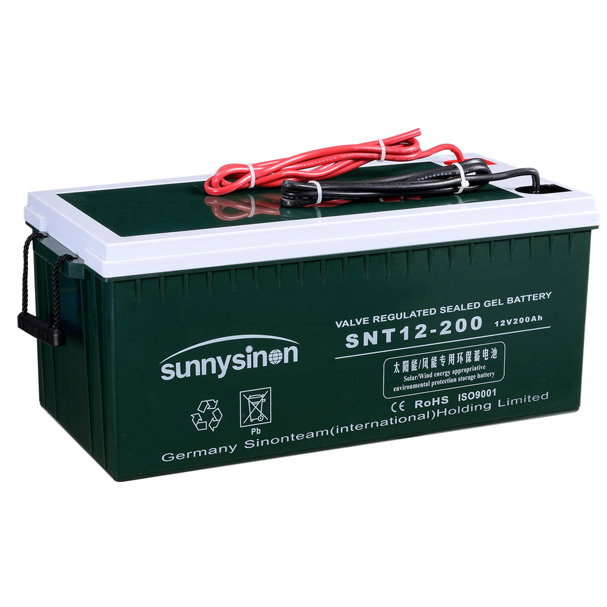

SNT12-200
SNT series solar energy special polymer microcapsule colloid accumulator
| 型号 | 标准电压 | 容量 | 外型尺寸(mm) | 参考重量 | 输出方式 | ||||||
| 端子 | 连线 | ||||||||||
| MODEL | V | AH | 长(L) | 宽(W) | 高(H) | 总高(TH) | KG | type | Texture of material | position | Sectional area |
| 12V series | |||||||||||
| SNT12-4 | 12 | 4 | 90 | 70 | 102 | 108 | 1.5 | A | CU | C | 1.5mm2 |
| SNT12-7 | 12 | 7 | 151 | 65 | 95 | 100 | 2.2 | A | CU | F | 1.5mm2 |
| SNT12-12 | 12 | 12 | 152 | 99 | 95 | 104 | 4.0 | A | CU | F | 1.5mm2 |
| SNT12-17 | 12 | 17 | 181 | 77 | 168 | 167 | 5.5 | C | CU | D | 2.5mm2 |
| SNT12-20 | 12 | 20 | 166 | 126 | 174 | 181 | 6.0 | C | CU | D | 2.5mm2 |
| SNT12-24 | 12 | 24 | 166 | 126 | 174 | 181 | 8.0 | B | CU | D | 2.5mm2 |
| SNT12-33 | 12 | 33 | 195 | 130 | 155 | 179 | 10 | D | Pb | C | 2.5mm2 |
| SNT12-38 | 12 | 38 | 197 | 166 | 175 | 181 | 12.6 | B | CU | D | 4.0mm2 |
| SNT12-55 | 12 | 55 | 230 | 138 | 215 | 229 | 18.4 | D | Pb | C | 4.0mm2 |
| SNT12-65 | 12 | 65 | 351 | 167 | 179 | 183 | 20.5 | B | CU | D | 4.0mm2 |
| SNT12-80 | 12 | 80 | 329 | 172 | 214 | 238 | 26 | B | CU | D | 6.0mm1 |
| SNT12-100 | 12 | 100 | 330 | 173 | 214 | 238 | 30 | B | CU | D | 6.0mm2 |
| SNT12-120 | 12 | 120 | 408 | 174 | 208 | 237 | 34 | B | CU | D | 6.0mm2 |
| SNT12-150 | 12 | 150 | 482 | 170 | 240 | 240 | 43 | D | Pb | C | 10.0mm2 |
| SNT12-200 | 12 | 200 | 522 | 239 | 218 | 245 | 60 | D | Pb | E | 10.0mm2 |
| SNT12-250 | 12 | 250 | 520 | 268 | 220 | 249 | 73 | D | Pb | E | 10.0mm2 |
| 6V series | |||||||||||
| SNT6-4 | 6 | 4 | 70 | 47 | 101 | 108 | 0.8 | A | CU | A | 1.5mm2 |
| SNT6-7 | 6 | 7 | 151 | 34 | 94 | 103 | 1.4 | A | CU | C | 1.5mm2 |
| SNT6-12 | 6 | 12 | 151 | 50 | 94 | 103 | 2.2 | A | CU | C | 2.5mm2 |
| SNT6-100 | 6 | 100 | 195 | 170 | 207 | 232 | 15 | D | Pb | A | 6mm2 |
| SNT6-200 | 6 | 200 | 323 | 178 | 226 | 255 | 29 | D | Pb | A | 10mm2 |
| 2V series | |||||||||||
| SNT2-100 | 2 | 100 | 171 | 72 | 205 | 225 | 6 | D | Pb | A | 按使用要求 |
| SNT2-200 | 2 | 200 | 172 | 110 | 329 | 351 | 13.5 | B | CU | G | |
| SNT2-300 | 2 | 300 | 170 | 150 | 328 | 351 | 19.5 | B | CU | G | |
| SNT2-400 | 2 | 400 | 211 | 176 | 329 | 367 | 28 | B | CU | L | |
| SNT2-500 | 2 | 500 | 241 | 172 | 331 | 366 | 32 | B | CU | L | |
| SNT2-800 | 2 | 800 | 410 | 175 | 330 | 365 | 55 | B | CU | I | |
| SNT2-1000 | 2 | 1000 | 475 | 175 | 328 | 365 | 65 | B | CU | I | |
| SNT2-1500 | 2 | 1500 | 401 | 351 | 341 | 378 | 98 | B | CU | J | |
| SNT2-2000 | 2 | 2000 | 491 | 351 | 344 | 383 | 132 | B | CU | K | |
| SNT2-3000 | 2 | 3000 | 712 | 353 | 341 | 382 | 198 | B | CU | K | |
Note:
(1) the standard capacity (10 hour rate) is the average value measured at 25 degrees Celsius, and can be achieved by charging and discharging cycles within 3 times
(2) the total height refers to the height of the battery terminals
Range of use
• Small power supply: 10-100W ranging from remote power free areas, such as plateau, islands, pastoral areas, border guards and other military and civilian living electricity, such as lighting, television, radio recorders, etc..
• 3-5KW home rooftop grid connected generation system.
• photovoltaic pump: solve the no electricity area of deep well drinking, irrigation.
• traffic areas: such as the pharos, traffic / railway signal lamp, traffic warning signs / street lamp, high-altitude obstacle lamp, highway / railway wireless telephone booth unattended power station etc..
• communications / Communications: solar unmanned microwave relay stations, fiber optic cable maintenance stations, broadcast / communication / paging power systems, rural carrier telephony, photovoltaic systems, small communications machines, soldier GPS power supplies, etc..
• petroleum, marine and meteorological areas: oil pipelines and reservoir gates, cathodic protection, solar power systems, oil drilling platforms, life and emergency power supplies, marine testing equipment, meteorological / hydrographic observation equipment, etc..
• Family lamp power: such as courtyard lamp, street lamp, portable lamp, camping lamp, lamp, lamp, fishing and climbing a black light lamp, tapping lamps, energy saving lamps.
• photovoltaic power plants: 10KW-50MW independent photovoltaic power station, scenic (firewood) complementary power station, a variety of large parking stations, charging stations, etc..
• solar power construction: combining solar power with building materials enables future large buildings to be self powered
• satellites, spacecraft, space solar power plants, etc..
